Non sticky PTFE Coated Fiberglass Conveyor Belt
Heat Resistant PTFE Mesh Conveyor Belt Manufacturer
Key Features
- Used in Non-woven fabrics, textile printing, silk printing, dyeing machine drying machine,screen printing UV machine, Hot air dryer conveyor belt
- High temperature resistance. It can continuously work under -140 to 260°C and max resist high temperature is up to 360°C
- Air permeability. lt can avoid wasting heat and improve drying efficiency
- Chemical resistance. lt can resist all most chemical medicines
- Non-Sticky. lt can easily remove all kinds of adhesives such as resin, paint and chemical medicines
- Good flex fotioue resistonce. It has high tensile strength and excellent flex fatigue resistance. It’s also used for small wheels
Our service
- Cut to size
- On-time Dispatch Guarantee
- Supply free samples and design drawing
- Customize the size, shape, color, thickness, and functionality as you need
- Read more PTFE Teflon products

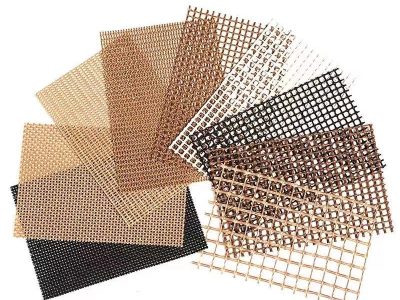

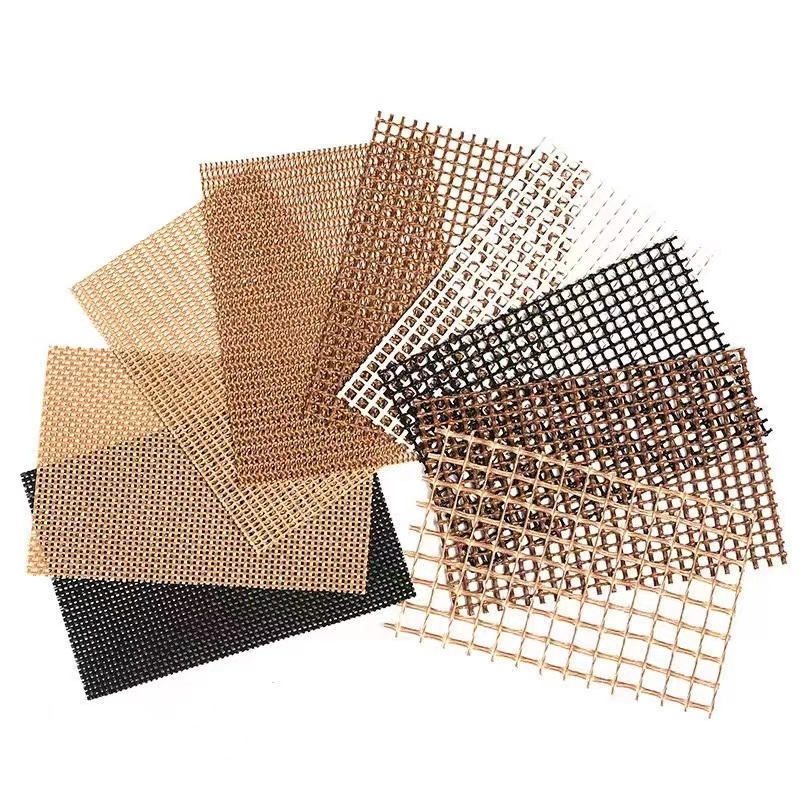

SUCONVEY PTFE Teflon Fabric Mesh Sheet Data | |||||||
Item | Material | Hole Size | Thickness | Weight | Temperature | Max Width | Tensile Strength |
SUM6001 | Fiber Glass | 1x1mm | 0.5mm | 370g/m² | -70—260°C | 4000mm | 310/290N/cm |
SUM6002 | Fiber Glass | 2x2mm | 0.7mm | 450g/m² | -70—260°C | 4000mm | 350/310N/cm |
SUM6004 | Fiber Glass | 4x4mm | 1.0mm | 400g/m² | -70—260°C | 4000mm | 390/320N/cm |
SUM6004B | Fiber Glass | 4x4mm | 1.0mm | 450g/m² | -70—260°C | 4000mm | 390/320N/cm |
SUM6004C | Kevlar+Fiber Glass | 4x4mm | 1.2mm | 600g/m² | -70—260°C | 4000mm | 395/370N/cm |
SUM6004D | Fiber Glass | 4x4mm | 1.0mm | 585g/m² | -70—260°C | 4000mm | 395/370N/cm |
SUM6004E | Fiber Glass | 4x4mm | 1.0mm | 585g/m² | -70—260°C | 4000mm | 395/370N/cm |
SUM6011 | Fiber Glass | 10x10mm | 1.2mm | 450g/m² | -70—260°C | 4000mm | 360/300N/cm |
SUM6051 | Fiber Glass | 0.5x1mm | 0.5mm | 420g/m² | -70—260°C | 4000mm | 310/290N/cm |
SUM6225 | Fiber Glass | 2×2.5mm | 0.9mm | 600g/m² | -70—260°C | 3000mm | 390/320N/cm |

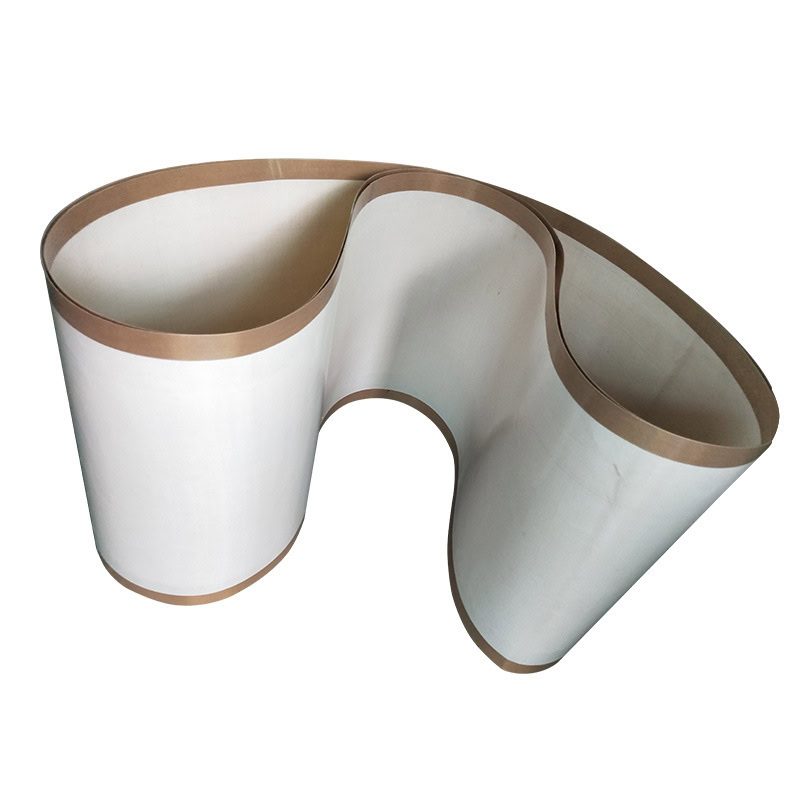

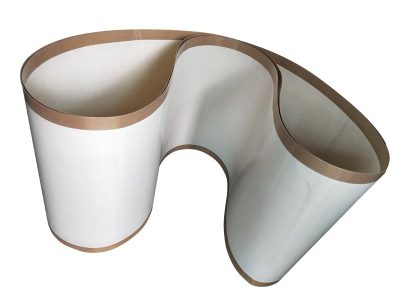

SUCONVEY High Strength PTFE Fiberglass Teflon Conveyor Belt Data | |||||
Item | Color | Thickness | Weight | Temperature | Tensile Strength |
mm | g/m2 | (°C) | N/5cm | ||
SUB7008N | Brown | 0.075 | 150 | -70—260 | 650/550 |
SUB7008BA | Black, anti static | 0.075 | 160 | -70—260 | 460/420 |
SUB7008W | White | 0.075 | 150 | -70—260 | 600/500 |
SUB7011N | Brown | 0.11 | 220 | -70—260 | 1150/1050 |
SUB7013N | Brown | 0.125 | 250 | -70—260 | 1200/1100 |
SUB7013BA | Black, anti static | 0.125 | 260 | -70—260 | 1050/850 |
SUB7013W | White | 0.125 | 250 | -70—260 | 990/900 |
SUB7015N | Brown | 0.145 | 310 | -70—260 | 1350/1250 |
SUB7018N | Brown | 0.18 | 370 | -70—260 | 1750/1550 |
SUB7023N | Brown | 0.23 | 470 | -70—260 | 2200/1750 |
SUB7025N | Brown | 0.25 | 500 | -70—260 | 2300/1850 |
SUB7025BA | Black, anti static | 0.25 | 450 | -70—260 | 2000/1700 |
SUB7028N | Brown | 0.28 | 620 | -70—260 | 2500/1800 |
SUB7028B | Black | 0.28 | 580 | -70—260 | 2400/1700 |
SUB7028BA | Black, anti static | 0.28 | 610 | -70—260 | 2400/1700 |
SUB7028W | White | 0.28 | 650 | -70—260 | 2600/1900 |
SUB7032N | Brown | 0.32 | 620 | -70—260 | 3000/2100 |
SUB7032BA | Black, anti static | 0.32 | 620 | -70—260 | 2800/2000 |
SUB7035N | Brown | 0.35 | 690 | -70—260 | 3200/2200 |
SUB7035BA | Black, anti static | 0.35 | 690 | -70—260 | 3000/2000 |
SUB7039N | Brown | 0.39 | 770 | -70—260 | 3200/2100 |
SUB7039BA | Black, anti static | 0.39 | 770 | -70—260 | 2800/1800 |
SUB7045N | Brown | 0.45 | 900 | -70—260 | 4000/3300 |
SUB7055W | White | 0.55 | 1000 | -70—260 | 4200/3500 |
SUB7065W | White | 0.65 | 1180 | -70—260 | 4500/3800 |
SUB7085W | White | 0.85 | 1300 | -70—260 | 5500/4300 |
SUB7095W | White | 0.95 | 1600 | -70—260 | 6500/5500 |
SUB7095BA | Black, anti static | 0.95 | 1600 | -70—260 | 6500/5500 |
Brown PTFE Belt
Black PTFE Belt
White PTFE Belt
Red PTFE Belt
Food grade PTFE Belt
Heat Resisant PTFE Belt
High Strength Belt
Non Sticky PTFE Belt

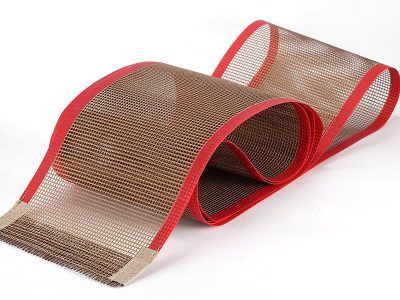

PTFE Seamless Belt
PFFE Open Mesh Sheet
Anti Corrosion bELT
Smooth PTFE Belt
About Company
Professional PTFE teflon fiberglass Conveyor Belt Manufacturer
Suconvey is a professional PEFT Teflon products manufacturer that chooses the highest quality raw materials from all over the world as our long time experience in this industry after comparing the materials from different countries and districts, we get rid of the materials with any bad feedback and products.
- Shenzhen Suconvey Rubber Products Co., Ltd.
- Ronglichang Industrial Park, No. 4 Zijing Road, Longgang District, Shenzhen City
- Mrs. Stephanie
- 86-13246961981
- [email protected]
Free Consultation
About Company
Professional High Strength PTFE Coated Belt Factory
At our PTFE fiberglass conveyor belt manufacturing facility, we place a strong emphasis on ensuring that only high-quality belts leave our factory doors.
One way we achieve this is by conducting thorough inspections at every stage of the manufacturing process. From the initial selection of raw materials to the final assembly of the belts, our team carefully examines each component to ensure it meets our stringent quality standards.
Another important aspect of our quality control process is regular testing and sampling. We continuously test our conveyor belts for various parameters such as tensile strength, heat resistance, and chemical resistance to verify that they meet or exceed industry standards.
PTFE Teflon Coated Conveyor Belt for Sale
Firstly, these belts have exceptional heat resistance which allows them to withstand high temperatures without losing their integrity or functionality. This makes them ideal for manufacturing processes that involve heat treatment or drying applications.
Secondly, PTFE fiberglass belts have excellent non-stick properties, preventing materials from adhering to the belt’s surface. This not only reduces downtime and cleaning requirements but also ensures consistent product quality by minimizing contamination and damage during the conveying process.
Moreover, these belts offer outstanding chemical resistance, making them suitable for use with corrosive substances and harsh environments. They can withstand exposure to acids, bases, solvents, and other chemicals without deterioration or degradation.
Usage of PTFE Teflon Coated Fiberglass Belt
- Used as various conveyor belts fusing belts, sealing belts, or anywhere need resisting high temperature, ant-sticking, chemical resistance etc
- Used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners
- lt is ideal to utilize as non-stick baking and cooking sheets
- Used as covering or wrapping material in petrochemical, chemical industries, as wrapping high temperature resistance material in electrical industries desulfurizing material in power plants etc
- Food processing, packaging and handling
FAQ
Most frequent questions and answers
ask more question
- Please confirm your inquiry request as the usefulness.
- Please measure your application place size and count the quantity. If you have drawing, better send to us. If you have no drawing please tell me your application and tell me where do you want to use it, better to know the application equipment model, we can make drawing or solutions for you.
- We will making drawing as your demands or required products photos or pictures.
- Please confirm the size and quantity, especially the specifications of what you want so that I can supply the most precise guide and suggestions.
- Making samples as your exact requirements and appplications.
- Testing and confirm the samples and making upgrade if necessary.
- Placing order and prepare the production.
- Arrange the delivery after out of warehouse test.
- After-sale service follow the goods always.
The manufacturing process of PTFE coated fiberglass fabric tape is a highly intricate and fascinating endeavor. To begin, the fiberglass fabric is carefully woven using durable and heat-resistant glass fibers. This fabric serves as the foundation for the tape, providing strength and stability.
Once the fabric is woven, it undergoes a meticulous cleaning process to remove any impurities that may hinder adhesion later in the production process. Then comes the crucial step of applying a layer of liquid PTFE (polytetrafluoroethylene) coating onto both sides of the fabric. This coating ensures that the resulting tape has remarkable non-stick properties, making it ideal for various applications.
As soon as the PTFE coating is applied, the fabric goes through multiple stages of drying and heating in order to solidify and bond with it completely. This sophisticated curing process not only enhances product durability but also ensures consistent quality throughout each batch produced.
