Impact Bed & Impact Bar for Conveyor

We are polyurethane conveyor impact beds & bars manufacturer in China. The primary purpose of the impact bed is to support the conveyor belt at points where heavy loads cause it to flex or sag. This reduces abrasion on the belt’s lower surface as well as spillage and buildup along its sides due to friction between them and their supporting frames or rollers. Impact beds also protect other components from shock loading caused by moving materials, which can ultimately lead to structural failure if left untreated.

conveyor belt Impact Bed & bars mANUFACTURER

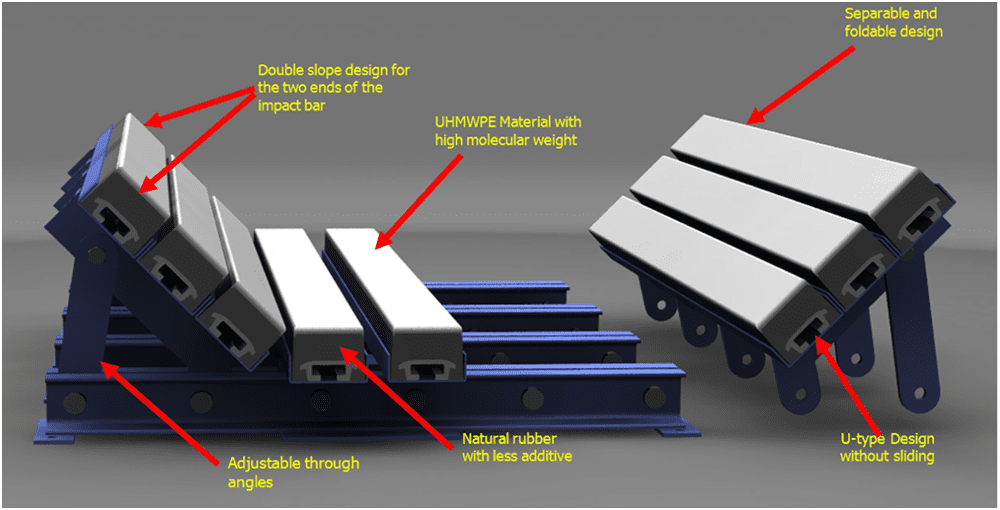

Key Features

  • Application:    Belt Width 650mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm, 2200mm
  • Improve production efficiency
  • Adjustable and easy to install
  • Prevent the occurrence of uneven force
  • Reduce the impact damage of the material
  • Wear-resistant UHMW-PE, which can reduce frictional resistance and prolong life
  • High elastic rubber of the impact bar
  • High-strength steel parts, which is light and does not rust, easy to install
  • Used in power plants, mining, port, cement plant, food factory

Our service

Application

Impact Bar Length

Impact Bar Quantity

Weight

Belt 650mm

1220mm

2

2

2

9kg

11kg

16kg

Belt 800mm

1220mm

2

2

2

Belt 1000mm

1220mm

3

3

3

Belt 1200mm

1220mm

3

3

3

Belt 1400mm

1400mm

4

4

4

10.5kg

12.5kg

18.5kg

Belt 1600mm

1400mm

4

4

4

Belt 1800mm

1524mm

5

5

5

11.5kg

14kg

20kg

Belt 2000mm

1524mm

5

5

5

Impact Bar Parameter Datasheet

Item

Parameter

Standard Type

High Elastic Type

Downhole Type

UHMWPE Part

Color

Blue

Blue

Black

Tensile breaking strength

Mpa

23

23

20

Elongation at break

%

300

300

250

Hardness

Shore A

60-70

60-70

65-75

Abrasion

cm3

0.053

0.053

0.08

Density

g/cm3

0.93-0.94

0.93-0.94

1.13

High Elastic Rubber Part

Hardness

Shore A

60-65

45-50

60-65

Strength of Extension

Mpa

19

19

19

Elongation at break

%

400

400

400

Metal Part

Type

Aluminium Alloy

Bond Strength

Bonding of PE&rubber

N/mm

≥10

≥10

≥10

Bonding of metal&rubber

N/mm

≥10

≥10

≥10

About Company

Professional custom Polyurethane products FACTORY

Suconvey is a professional silicone&PU rubber products manufacturer that chooses the highest quality raw materials from all over the world as our long time experience in this industry after comparing the materials from different countries and districts, we get rid of the materials with any bad feedback and products.

Free Consultation

Urethane Parts for Conveyor System

We have developed a series of high quality, high performance Polyurethane rollers, Polyurethane wheels, Polyurethane rubber skirting, Polyurethane screen mats, Polyurethane Blades, Custom Urethane Products and so on. Polyurethane is a versatile material that can be used to manufacture products in a variety of ways. There are three main types of polyurethane parts: cast, extruded, and molded. Each type has its own unique benefits.

Happy Customers

Year after year, multiple industries recognize Suconvey Rubber as a leader in quality, service, and innovation. We’re proud to be one of the top rubber products manufacturers in the world.

Giff
Giff
University laboratory
Read More
I have worked with them for a little over a year now and I have to say that I am generally satisfied. The product has performed as I hoped, with very few issues. The customer service has also been responsive and helpful. Overall, I would recommend their product to others in the market for the rubber.
Brock
Brock
Automobile manufacturers
Read More
This is a China manufacturer that I am satisfied with.Despite COVID-19, the shipping is delayed. But I like professional manufacturers like this.
Ariel
Ariel
Food Factory
Read More
I am very grateful to stephanie for giving very appropriate advice on my project. Fast fast fast delivery.
Codey
Codey
Fish Pond Project
Read More
I did a lot of research before purchasing the rubber products and ultimately went with Suconvey Rubber. I'm so glad I did! They are a super reliable supplier and professional rubber experts.
Previous
Next

Frequently asked questions

Here are the most frequently asked questions and answers about how to buy customized polyurethane products

What is a conveyor impact bed? A conveyor impact bed is an essential component of any conveyor system that helps protect the belt from damage due to heavy or abrasive materials. It consists of rubber blocks that are held together in a metal frame, which can be either fixed or adjustable depending on the requirements of the system. This type of bed absorbs shock and distributes it evenly over the entire length of the belt, allowing for smoother and safer operation.

The benefits of using conveyor impact beds extend beyond increased operational performance and reliability. In addition to these features, they offer cost savings due to their low purchase price and long service life.Furthermore, their design helps reduce noise levels created by heavy objects falling on them compared to traditional rubber mats or metal plates used for similar purposes. As such, they are an ideal choice for facilities looking for a cost-effective way to improve productivity while maintaining employee comfort levels. Not only does this ensure safe operation with minimal downtime, but it also prevents costly repairs which can occur when excessive wear is placed on belts without proper protection.

  1. Please confirm your inquiry request as the usefulness.
  2. Please measure your application place size and count the quantity. If you have drawing, better send to us. If you have no drawing please tell me your application and tell me where do you want to use it, better to know the application equipment model, we can make drawing or solutions for you.
  3. We will making drawing as your demands or required products photos or pictures.
  4. Please confirm the size and quantity, especially the specifications of what you want so that I can supply the most precise guide and suggestions.
  5. Making samples as your exact requirements and appplications.
  6. Testing and confirm the samples and making upgrade if necessary.
  7. Placing order and prepare the production.
  8. Arrange the delivery after out of warehouse test.
  9. After-sale service follow the goods always.

Before purchase: Give the most professional guide for choosing the right products or service system.

After purchase: Warranty for 1 or 2 years as the application and your requirements. Any damage will be repair or replace new during warranty as long as use the products as the right way and normal wear of the products apart from any break by personal reasons.

After-sale: Always give the most professional suggestions for the products working status, give support for customers marketing developments of own brand business. Always repair as long as we keep cooperation.

Yes, we can provide existing sample for free, but a little sample charge for custom design, new customers are expected to pay for the delivery cost, the sample charge will be deducted from the payment for formal order.

For existing product, it takes 1-2 days; If you want your design, it may take 3-5 days depends on your design content.

We have our QC department empowered with a professional QC team.  “Quality First, Cutomer Focus” is our quality policy, and we have Incoming Quality  Control / In-process Quality Control / Out-going Qualtiy Control throughout our factory operations.

To withstand all the above extreme working environment requirements, Suconvey has to choose the best quality raw materials which can not only produced good performance silicone products but also have many outstanding advantages such as will not change to yellow even use for a long time, will not become brittle easily broken, will not shrink or expand although using for a long time, will also not easily change the specification to influence your machine operation. Only based on the above quality control, silicone products can be serviced for a long time to save your energy to replace them and your time waiting for the replacement so that the productivity is high.
