Weatherproof Silicone Sealing Strip for Window
Custom Silicone Sealings for Window Manufacturer
Silicone sealing strips for window applications are used to block air leakage, reduce water ingress, improve weather resistance, and protect the gap between glass, frame, and moving parts. Buyers may also search for this product as a silicone window seal, window seal strip, silicone window gasket, window glazing seal, or weatherproof silicone strip.
For window systems, the seal has to do more than fill a gap. It needs to stay flexible through temperature change, hold its shape over time, and keep a stable sealing line under sunlight, rain, wind, and repeated opening or closing. Silicone is widely used for this type of job because it handles outdoor exposure better than many common sealing materials. Our silicone strip specifically positions window seals as weatherproof and UV-resistant for architectural and automotive glazing.
Why Silicone Window Seals Are Widely Used
A good window sealing strip helps improve comfort, reduce drafts, and support cleaner long-term performance around the glazing system. In many projects, the seal also helps reduce vibration, cushion the glass edge, and improve closing feel in sliding or hinged window structures.
Silicone is especially useful when the seal will face strong sunlight, changing temperatures, humidity, or outdoor aging. Compared with many general-purpose materials, silicone keeps flexibility longer and is less likely to crack, harden, or shrink in demanding environments. That makes it a practical choice for architectural windows, industrial viewing panels, equipment windows, and transport glazing systems.
Product Details
Custom UV resistant silicone window gasket supplier in China
Key Advantages
When selecting a silicone window gasket, the profile shape is only one part of the decision. Buyers should also consider exposure to UV, rain, heat, cold, cleaning chemicals, and repeated compression. If the strip is too soft, it may not hold position well. If it is too hard, it may not seal uneven surfaces effectively.
- Good weather resistance for indoor and outdoor window sealing
- UV-resistant material for long-term exposure
- Flexible over a wide temperature range
- Helps reduce air leakage, dust entry, and water penetration
- Suitable for glass, aluminum frame, and glazing assemblies
- Available in custom profiles, hardness, and colors
- Can be produced for architectural, industrial, and vehicle window applications
China Extruded silicone window seal profile Manufacturer
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Silicone Sealing Strips for Window |
| Profile Structure | Solid, hollow, or custom shaped profile |
| Color | Pantone custom colors and transparent |
| Specific Gravity | 0.9-1.3 g/cm³ |
| Hardness | 20-90 Shore A |
| Appearance | Smooth / Wave / Braided |
| Working Temperature | -60°C to 350°C |
| Tear Strength | Up to 25 MPa |
| Elongation | 300-650% |
| Deformation Rate | ≤9% |
| Weather Resistance | Suitable for outdoor and long-term environmental exposure |
| UV Resistance | Available for architectural and glazing applications |
| Typical Applications | Architectural windows, sliding windows, aluminum frame glazing, industrial observation windows, automotive glazing |
Typical Applications
Silicone window sealing strips can be used in:
- Architectural windows
- Aluminum frame windows
- Sliding windows
- Hinged windows
- Glass edge protection systems
- Industrial observation windows
- Equipment access windows
- Automotive and transport glazing systems
Custom Window Seal Profiles for Different Structures
Not all window frames use the same seal design. Some need a simple solid strip. Some need a hollow bulb profile for lower closing force. Others need a channel-type profile for glass edge protection or a shaped gasket that fits a defined groove in the frame.
For custom projects, the most important points are the frame structure, gap size, compression target, and installation method. A seal that works well on one window system may not fit another. That is why custom extrusion is often the better option for replacement projects, OEM window systems, and equipment glazing assemblies.
Why Custom Silicone Window Seals Matter
A poorly matched window seal can lead to drafts, poor closing feel, water leakage, or early replacement. In glazing systems, small profile differences can change how the seal compresses and how the window performs over time. A custom silicone sealing strip helps match the exact frame, groove, and glass structure instead of forcing the application to fit a generic shape.
For buyers working on replacement seals, custom windows, industrial enclosures, or automotive glazing, profile accuracy is often more important than choosing the lowest-cost material. A better-fit seal usually brings better sealing stability and fewer installation problems.
What We Can Customize
- Cross-section profile
- Solid or hollow structure
- Width, height, and wall thickness
- Hardness range
- Transparent or custom colors
- Cut lengths or continuous rolls
- Adhesive backing when needed
- Different grades for architectural, industrial, or special-use environments
Packaging & Shipping Information
To protect the product during global transportation and storage, we apply export-grade packaging and provide flexible shipping solutions.

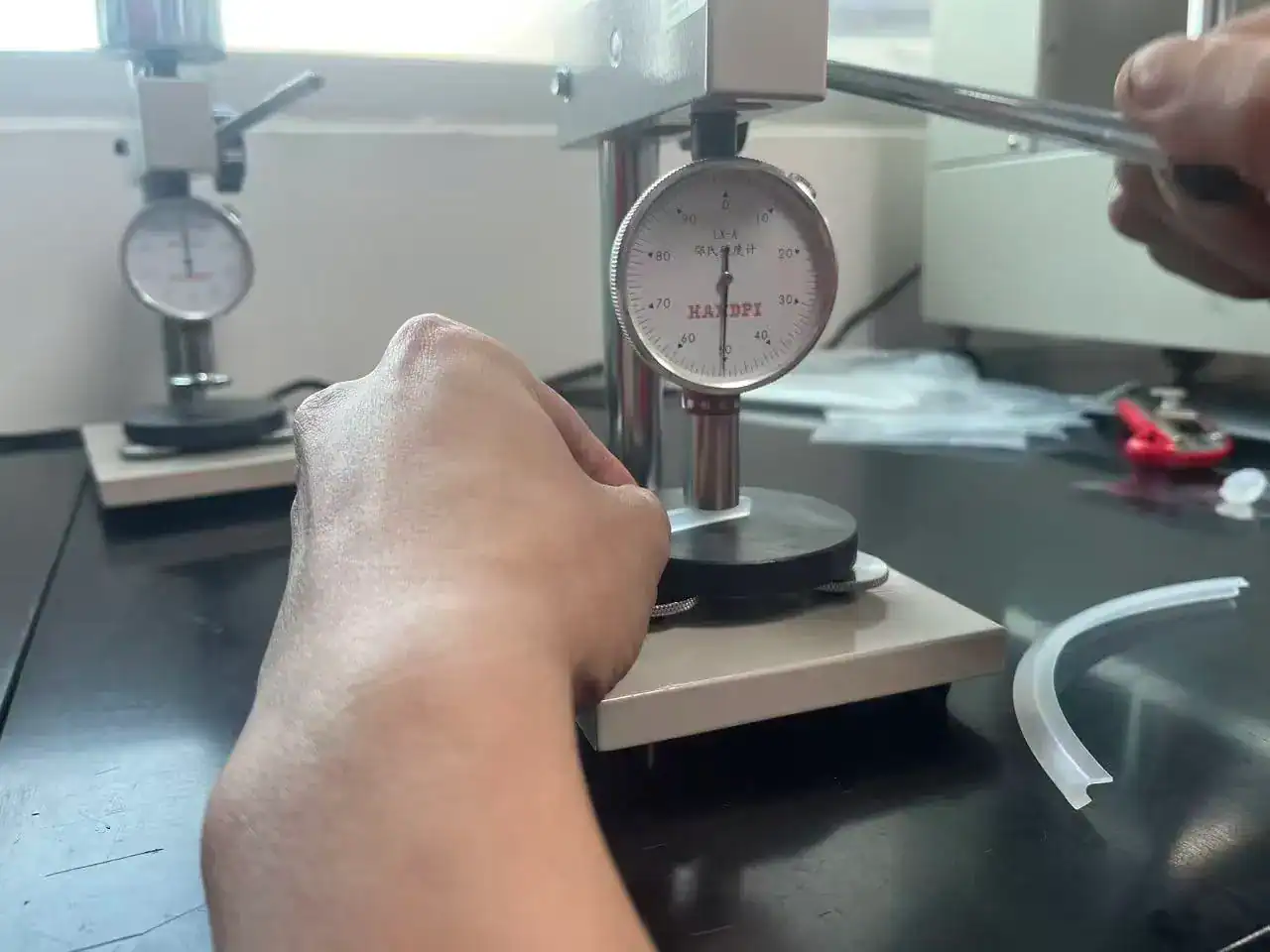

Pre-Shipment Inspection
Each batch is inspected before packaging to confirm hardness, thickness, surface condition, and visual uniformity. Batch codes are recorded and compliance documentation may be provided when required for regulatory purposes.
Packaging Method
Silicone strips are wrapped with protective film to prevent dust, moisture, and surface damage. Several rolls are placed into reinforced cartons, which are then secured on fumigation-free pallets using straps and stretch film.
Shipment Options
We regularly ship to customers in Europe, North America, and Asia through sea freight, air freight, or express courier for urgent testing needs. Both FCL and LCL shipments are available.
Documentation Support
All necessary export documents can be provided for customs clearance, including commercial invoice, packing list, bill of lading or airway bill, certificate of origin, and food-contact compliance statements or test reports when applicable.
Sample Delivery
Material samples and short test strips can be supplied for validation and equipment trials. Samples can be sent via DHL, FedEx, UPS, TNT, or using your appointed courier account.
After-Arrival Support
If any damage or discrepancies are discovered during unloading or inspection, customers may contact us within 7 days with photos and batch information. Our team will respond promptly to assess the situation and provide a reasonable solution.
Happy Customers
Year after year, multiple industries recognize Suconvey Rubber as a leader in quality, service, and innovation. We’re proud to be one of the top rubber products manufacturers in the world.
Related Products
Frequently Asked Questions
If your question is not listed, please contact us.
It is best to send the cross-section drawing or sample, frame dimensions, application type, material requirements, color, hardness preference, and estimated quantity. That helps match the silicone sealing strip to the real installation condition and speeds up sample development.
You should check the frame type, groove dimensions, glass thickness, exposure to weather and sunlight, required compression force, and whether the strip is used for sealing, edge protection, or both. These details affect fit and long-term sealing performance.
Yes. Silicone window gasket profiles are commonly used in sliding window systems, hinged windows, aluminum frames, glazing assemblies, and industrial viewing panels. The correct profile shape depends on the frame structure and compression requirement.
Yes. Our silicone strip are positioned for weatherproof and UV-resistant use in architectural and automotive glazing. That makes them suitable for many outdoor sealing environments.
Silicone is often chosen for window sealing because it performs well in sunlight, temperature change, and long-term outdoor exposure. It stays flexible over a broad temperature range and usually has better UV and aging resistance than many general-purpose alternatives.
Yes. Custom silicone window seals can be produced according to a drawing, profile section, groove size, or sample. This is often the best option for replacement seals, custom window systems, industrial equipment glazing, and non-standard frame designs.
